1. Overview

JPCERT/CC has placed multiple monitoring sensors across the Internet to monitor packets that are transmitted exhaustively to certain IP address ranges. It can be assumed that these packets are intended to scan for certain devices or service functions. Also, JPCERT/CC continuously gathers packets that are observed by the sensors, and these packets are categorized by the destination port number, source region, etc. Then this information is analyzed along with information about vulnerabilities, malware and attack tools to obtain information on attacking activities or preparatory activities. Data collected through sensors are analyzed, and if any problem subjected to an attack or used to carry out an attack is found, JPCERT/CC provides information to parties who may be able to solve the problem and asks them to take appropriate steps. This report will provide an overview of the results of monitoring activities by JPCERT/CC’s Internet threat monitoring system (TSUBAME) during this quarter and their analysis. The top 5 services scanned in Japan during this quarter are shown in [Table 1].

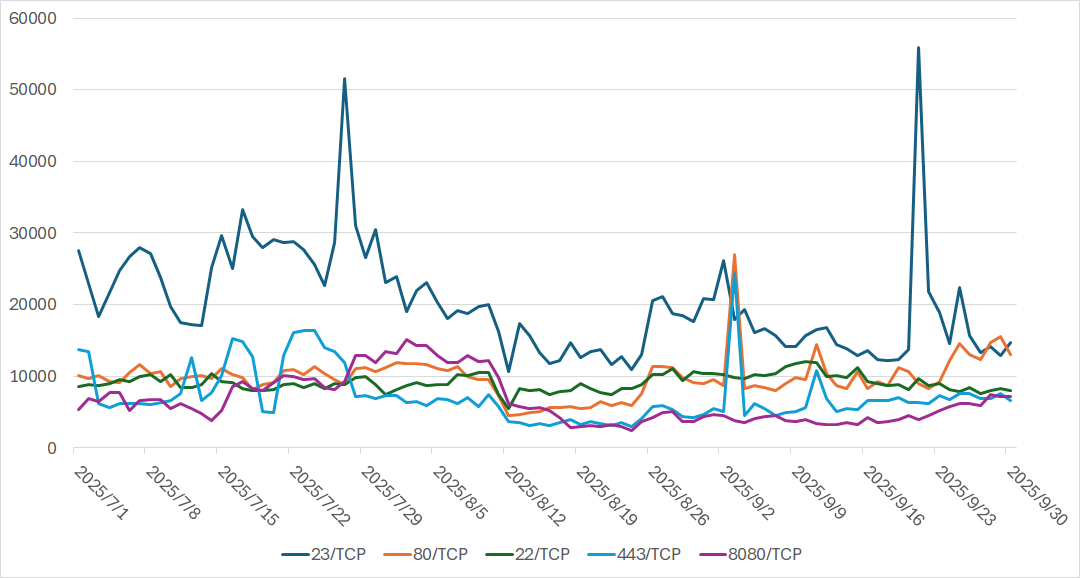

The numbers of scan packets observed for the services listed in [Table 1] are shown in [Figure 1].

The service most frequently scanned this quarter was Telnet (23/TCP).The second and fourth places were http (80/TCP) and https (443/TCP), which are mainly used by websites.ssh (22/TCP) ranked third, and the fifth place was 8080/TCP, which is often used as an alternative port for web servers or an admin UI port. Next, the top 5 source regions where scanning activities targeting Japan were seen most frequently during this quarter are shown in [Table 2].

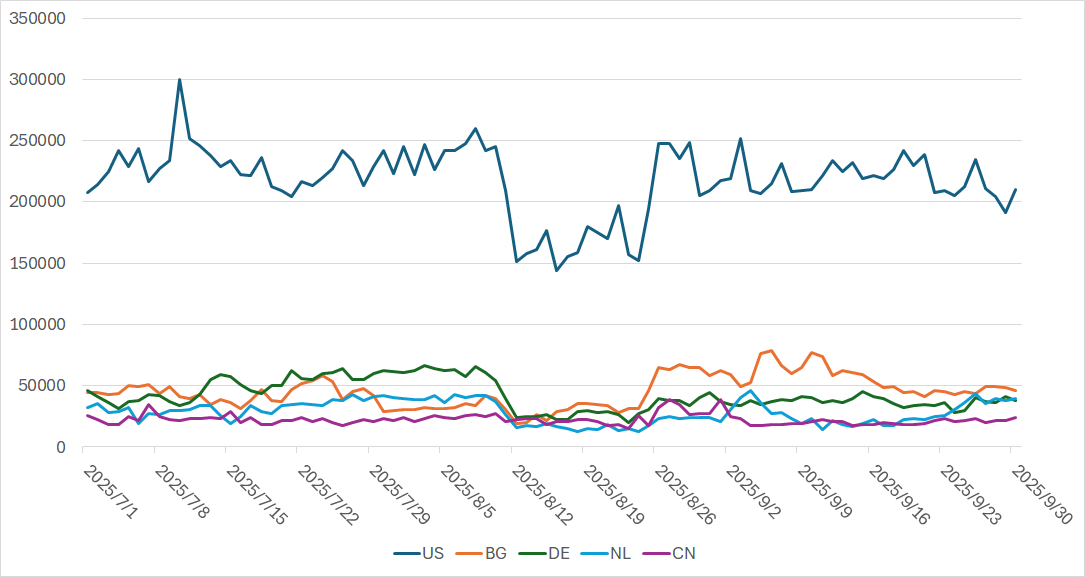

The trend of source regions for this quarter listed in [Table 2] are shown in [Figure 2].

The USA remained at the top, and the second and fourth places were also the same as in the previous quarter. Germany rose from the sixth to third place, and China fell from the third to fifth place.TSUBAME uses Regional Internet Registry (RIR) allocation data to determine the region of each IP address.

2. Observation results of packets sent from TP-Link routers apparently infected with malware

JPCERT/CC believes that most of the packets observed by TSUBAME are scan packets sent from devices infected with malware such as Mirai, and the destination port is Telnet (23/TCP).

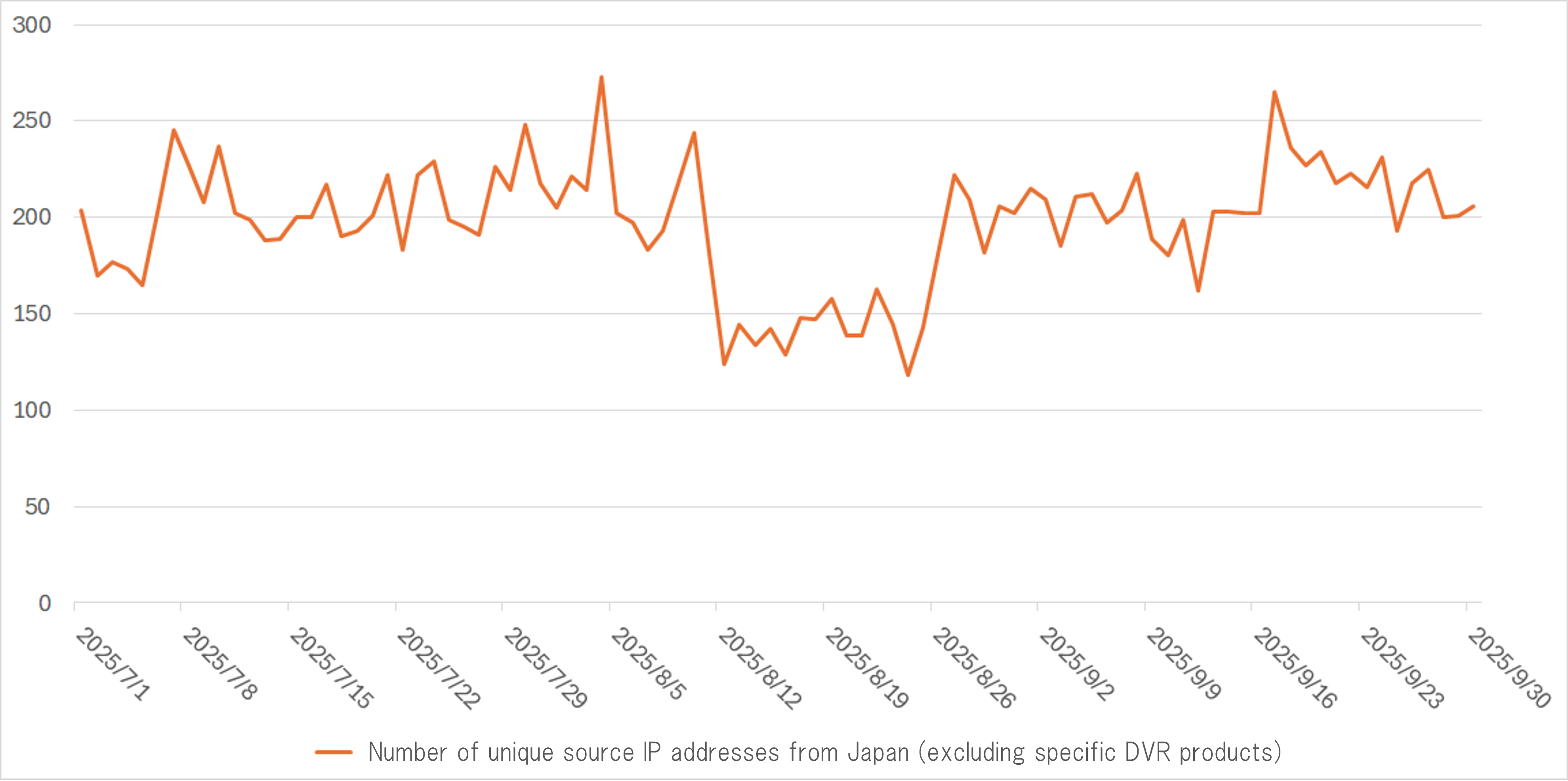

From among the packets observed by TSUBAME, JPCERT/CC examined those targeted to Telnet daily and found that they originated from around 200 nodes in Japan each day (Figure 3).

Upon close observation, two notable trends can be identified. First, there was a temporary decline in packets from August 12 to 26. Second, from around September 17 there was an increase in Telnet packets sent from malware-infected digital video recorders (DVRs) made by a particular manufacturer. Investigation of these DVRs is still under way. Figure 3 shows the changes in the number of source IP addresses for Telnet packets sent from within Japan, excluding the packets sent from these DVRs.

TP-Link routers have been prominent source nodes for packets observed by TSUBAME. Some of the product names that have been observed to date are shown in Table 3.

When the status of source routers was examined, the admin web console (admin screen) was directly accessible from the Internet.
Given its intended use, the admin screen should only be accessible from inside a LAN. When the admin screen is accessible from a WAN, it increases the risk of vulnerabilities hidden in the admin screen getting exploited, and the risk of intrusion into the admin screen by brute force attacks.
Either of the following factors is deemed to be responsible for accessibility from the WAN side.

• The remote access feature (remote management) of the admin screen is enabled
• The admin screen is published to the iInternet due to an AP-mode router being connected to a LAN port by error, despite a network environment in which a global IP address is allocated by DHCP or other means

In addition, some of the observed routers were running on firmware from 2022 or earlier, indicating that they have likely not been updated for a long time. In this case, there is a risk of being subjected to attacks exploiting known vulnerabilities, so devices that have been used without updating firmware are at a very high risk of unauthorized access and tampering, as well as being used as stepping stones for attacks due to malware infection.
Due to the abovementioned problems related to network configuration and operation management, JPCERT/CC believes that some of the TP-Link routers may have already been turned into bots due to unauthorized access and malware infection, and are being used as stepping stones for external scanning and attack campaigns.
Internet-connected devices are not just accessible to users but subject to access attempts by attackers as well. Be sure to keep the firmware up-to-date, use proper authentication methods, set strong passwords, and disable unnecessary services.

3. Request from JPCERT/CC

JPCERT/CC may contact users of IP addresses sending suspicious packets and ask them to take certain action via Internet service providers. If you ever receive such requests, we hope you understand the purpose of our investigation activities and, if possible, provide information such as products used, firmware versions, and any evidence of intrusion. There are a number of unknown scanning activities, including those discussed in this report. Your information may offer valuable insights leading to clarification.

4. References

1. Service Name and Transport Protocol Port Number Registry
https://www.iana.org/assignments/service-names-port-numbers/service-names-port-numbers.xhtml
