1. Overview

JPCERT/CC has placed multiple monitoring sensors across the Internet to monitor packets that are transmitted exhaustively to certain IP address ranges. It can be assumed that these packets are intended to scan for certain devices or service functions. Also, JPCERT/CC continuously gathers packets that are observed by the sensors, and these packets are categorized by the destination port number, source region, etc. Then this information is analyzed along with information about vulnerabilities, malware and attack tools to obtain information on attacking activities or preparatory activities. Data collected through sensors are analyzed, and if any problem subjected to an attack or used to carry out an attack is found, JPCERT/CC provides information to parties who may be able to solve the problem and asks them to take appropriate steps. This report will provide an overview of the results of monitoring activities by JPCERT/CC’s Internet threat monitoring system (TSUBAME) during this quarter and their analysis. The top 5 services scanned in Japan during this quarter are shown in [Table 1].

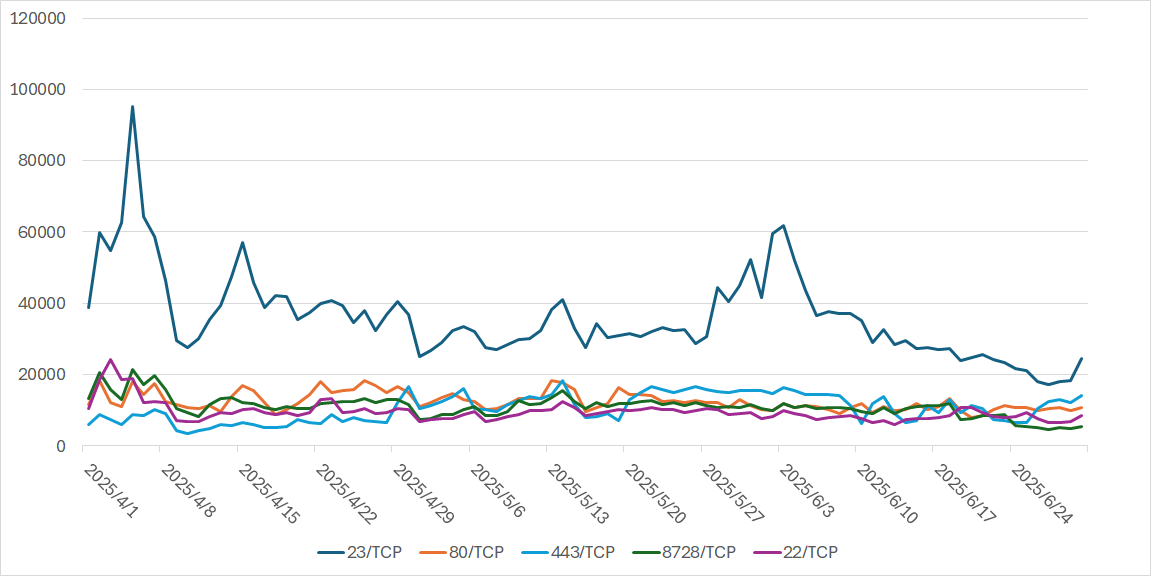

The numbers of scan packets observed for the services listed in [Table 1] are shown in [Figure 1].

The service most frequently scanned this quarter was Telnet (23/TCP).The second and third places were http (80/TCP) and https (443/TCP), which are mainly used by websites. 8728/TCP fell to fourth place,The fifth places was ssh (22/TCP). Next, the top 5 source regions where scanning activities targeting Japan were seen most frequently during this quarter are shown in [Table 2].

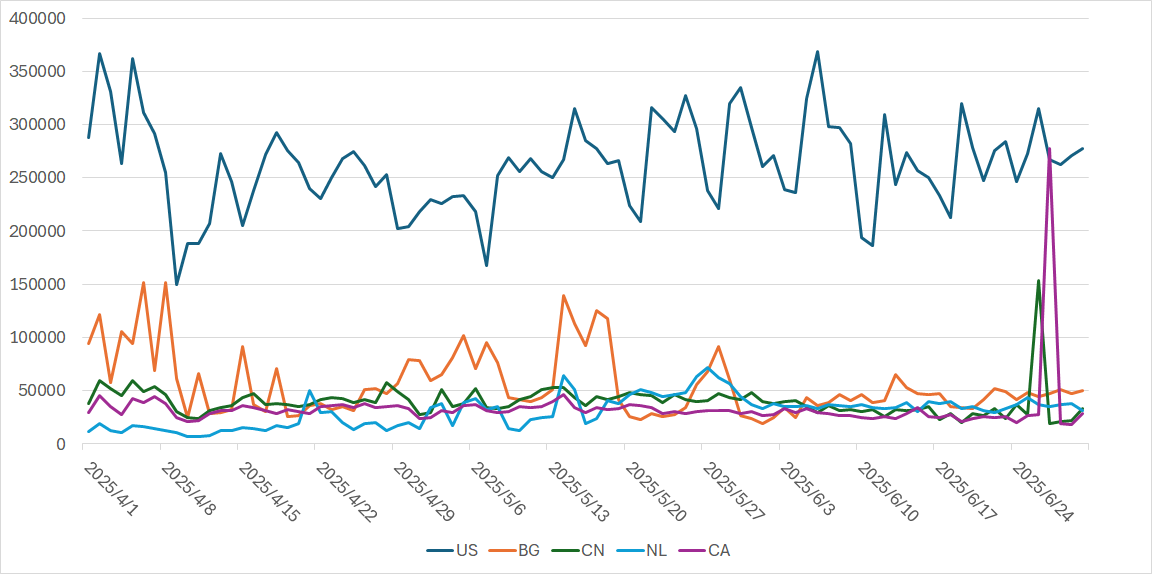

The trend of source regions for this quarter listed in [Table 2] are shown in [Figure 2].

The top three regions were the same as in the previous quarter, The Netherlands rose from the fifth to fourth place, and Canada jumped from the ninth to fifth place.TSUBAME uses Regional Internet Registry (RIR) allocation data to determine the region of each IP address.

2. Observation of packets sent from malware-infected devices

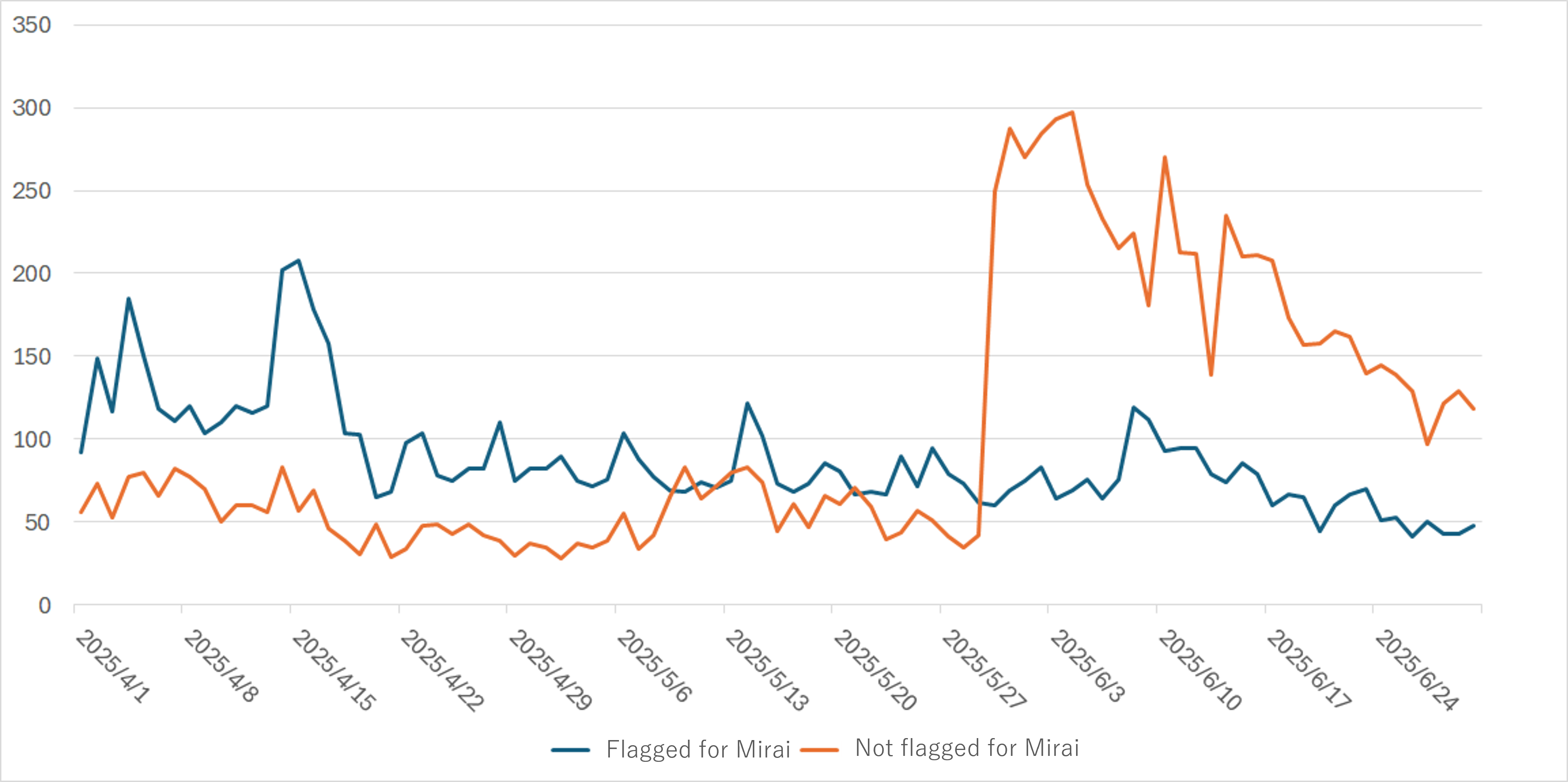

JPCERT/CC believes that most of the packets observed by TSUBAME are scan packets sent from devices infected with malware such as Mirai. Among the packets targeted to Telnet (23/TCP), JPCERT/CC investigated those sent from IP addresses in Japan for the presence of Mirai characteristics (Figure 3). There are packets with the characteristics of Mirai and those without them, and in early June packets without Mirai characteristics temporarily increased. This is presumably because different hacker groups use different malware. The type of device used can be identified by tracing the source.
This chapter will discuss the types of device that were found to be used.

DVR/NVR

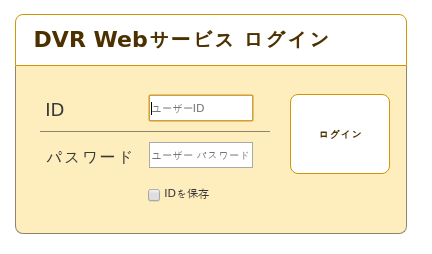

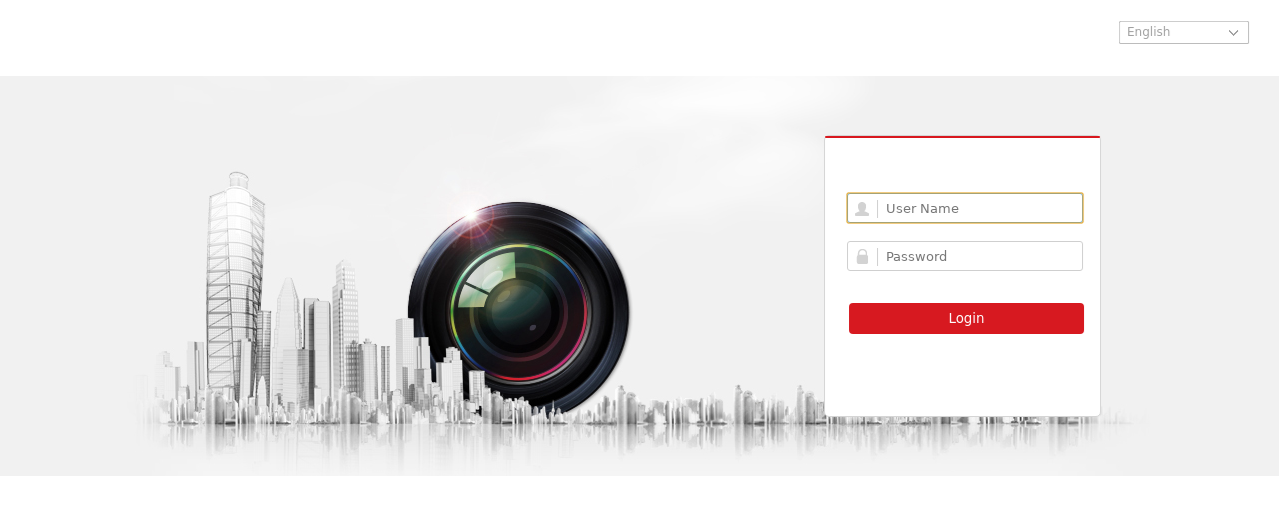

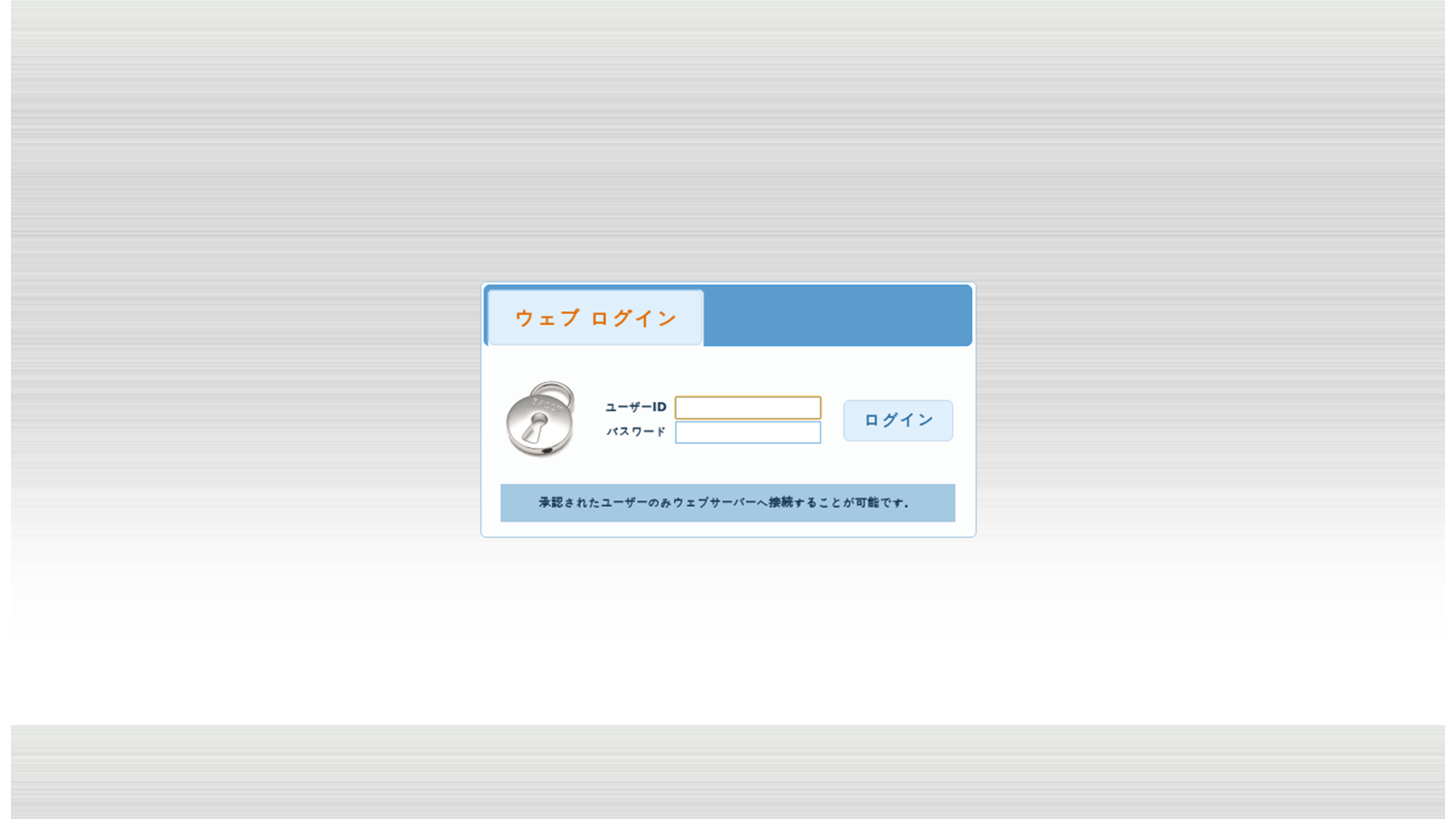

Based on evidence such as WebUI and HTML source code, it is assumed that many of the devices are overseas products made in China, South Korea, and elsewhere (Figures 4–6). These devices have reported vulnerabilities, which are apparently exploited to spread Mirai and other malware infections.

Many of these digital video recorders (DVRs) and network video recorders (NVRs) are presumably installed as part of a security surveillance system. To protect the device itself and the organization installing and operating it, as well as any related parties, from attackers, business operators that install such systems must take appropriate protective measures by installing a router and firewall between the Internet and the system, and set up VPN when making a device remotely accessible.

NAS

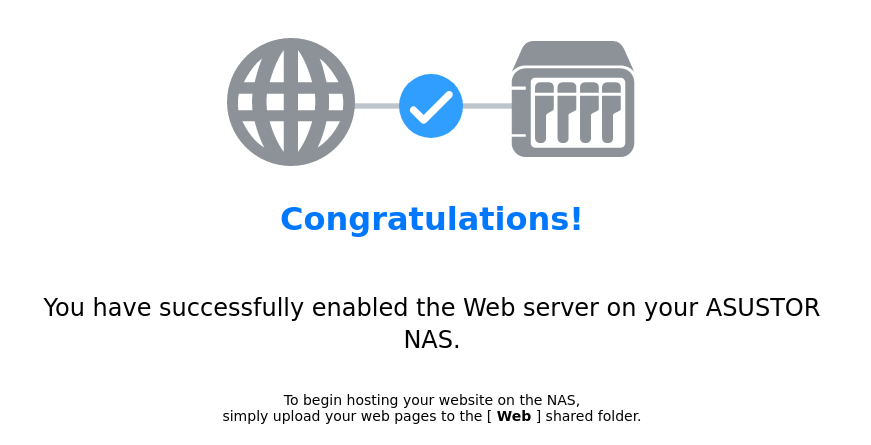

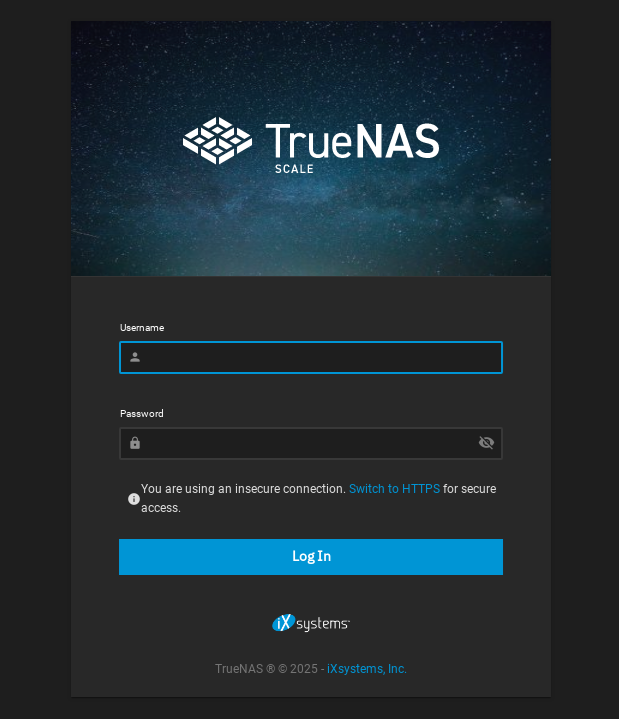

Based on evidence such as WebUI and HTML source code, it is assumed that many of the devices are NAS products made by Taiwanese vendors for SOHO applications (Figure 7). JPCERT/CC has also confirmed the existence of a server incorporating open source NAS software (Figure 8). These devices have reported vulnerabilities, which are apparently exploited to spread Mirai and other malware infections.

It is assumed that these products were installed inside of routers or other network devices and yet made publicly accessible on the iInternet via UPNP or other means. When installing NAS devices, it is important to carefully consider whether they need to be accessed from outside the organization or home, and if there is no such need, to avoid making any unnecessary settings that entail risk. Some of the NAS devices investigated appeared to be infected with ransomware.

In addition to the above devices, JPCERT/CC also found products that appeared to be routers and solar power generation monitors offered by vendors in Japan and abroad, based on WebUI and HTML source code and other evidence. Many of these products were already past the end of support. They have reported vulnerabilities, which are apparently exploited to spread Mirai and other malware infections.

Internet-connected devices are not just accessible to users but subject to access attempts by attackers as well. Be sure to take necessary precautions when using these devices, such as keeping the firmware up-to-date, using proper authentication methods, setting strong passwords, and disabling unnecessary services.

3. Request from JPCERT/CC

JPCERT/CC may contact users of IP addresses sending suspicious packets and ask them to take certain action via Internet service providers. If you ever receive such requests, we hope you understand the purpose of our investigation activities and, if possible, provide information such as products used, firmware versions, and any evidence of intrusion. There are a number of unknown scanning activities, including those discussed in this report. Your information may offer valuable insights leading to clarification.

4. References

1. Service Name and Transport Protocol Port Number Registry
https://www.iana.org/assignments/service-names-port-numbers/service-names-port-numbers.xhtml
